Tool Set - 3 pieces - for the Installation of the KEDO Oversize Foot Brake Bolt Item # 10122RP - XT500

• Fits XT500
• Tool set  for the preparation and installation of the KEDO Oversize Foot Brake Bolt Item # 10122RP

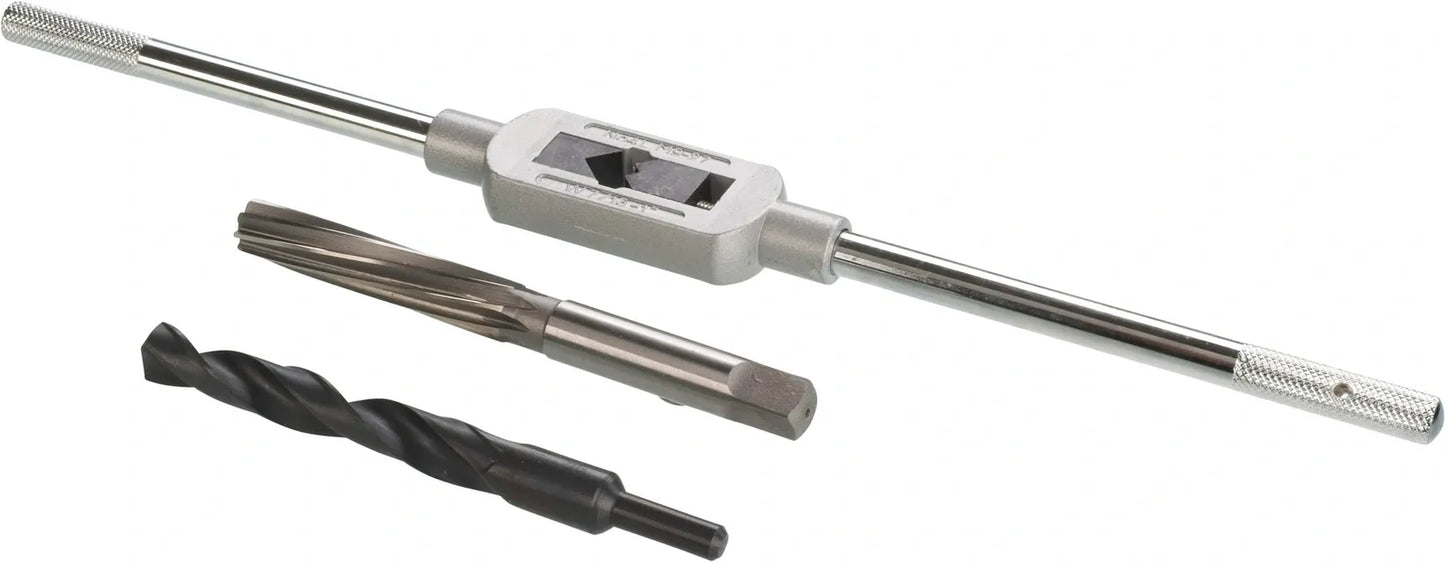

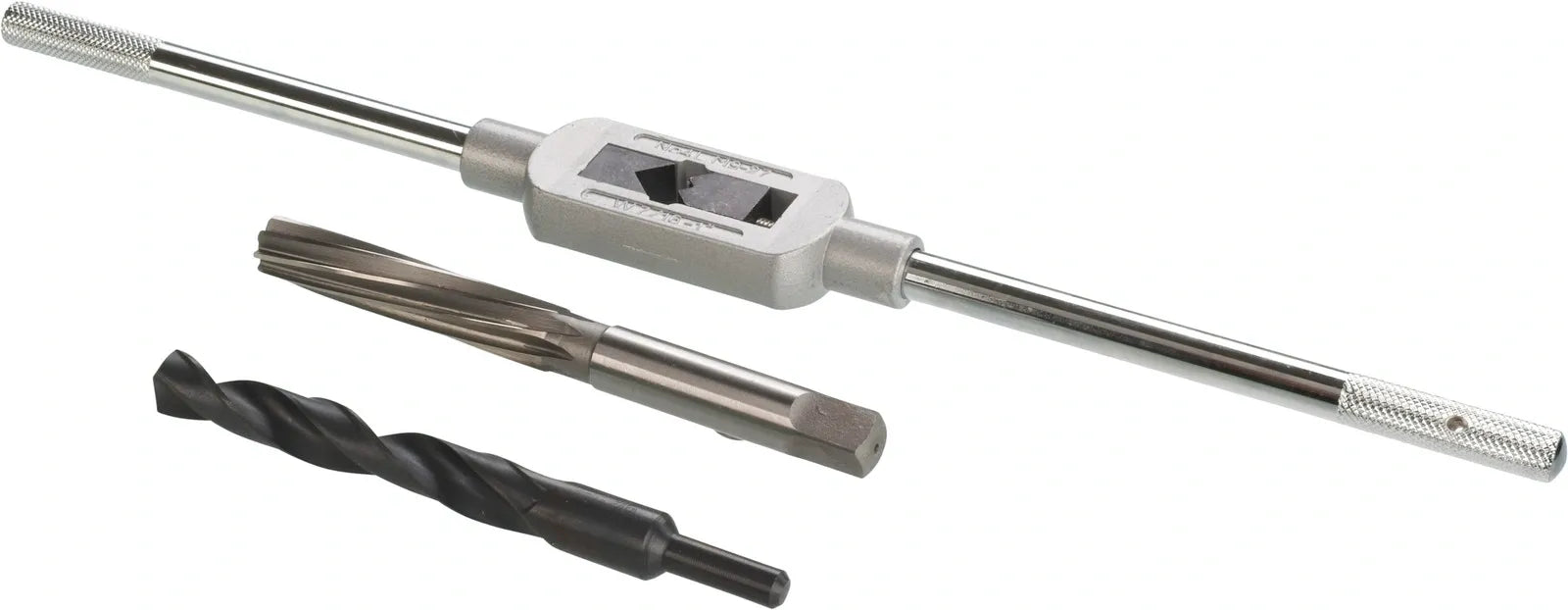

• Includes tap wrench, 17.5 mm HSS drill with 10 mm shaft, HSS reamer 18.0 mm

Tool Set for Installation KEDO Foot Brake Lever Shaft with Oversize

Our item # 10122RP is a replica of the original foot brake lever shaft in a high-quality, tolerance-reduced design made of stainless steel. The shaft diameter has an oversize of 18mm. Before installation, the worn seat in the XT frame must be adjusted to the new dimensions. We offer this tool set, item # 60720 for this purpose.

The installation steps:

- To prepare for the repair, we recommend removing the swingarm. This makes it easier to reach the shaft seat in the frame, although this is not absolutely necessary. In the instruction video, we show the repair without removing the swingarm.

- Drilling and manual reaming of the shaft seat in the frame to exactly 18.00 mm - easy to carry out with this tool set

- A cordless drill driver with adjustable torque and holder for 10 mm drill bits is required - this is the usual standard for Bosch, Makita & Co.

- After removing the old shaft and cleaning the shaft seat, it is drilled out with the 17.5 mm drill bit, ensuring that the drill is guided parallel, at low speed and that it is cleaned and re-oiled frequently during the drilling process.

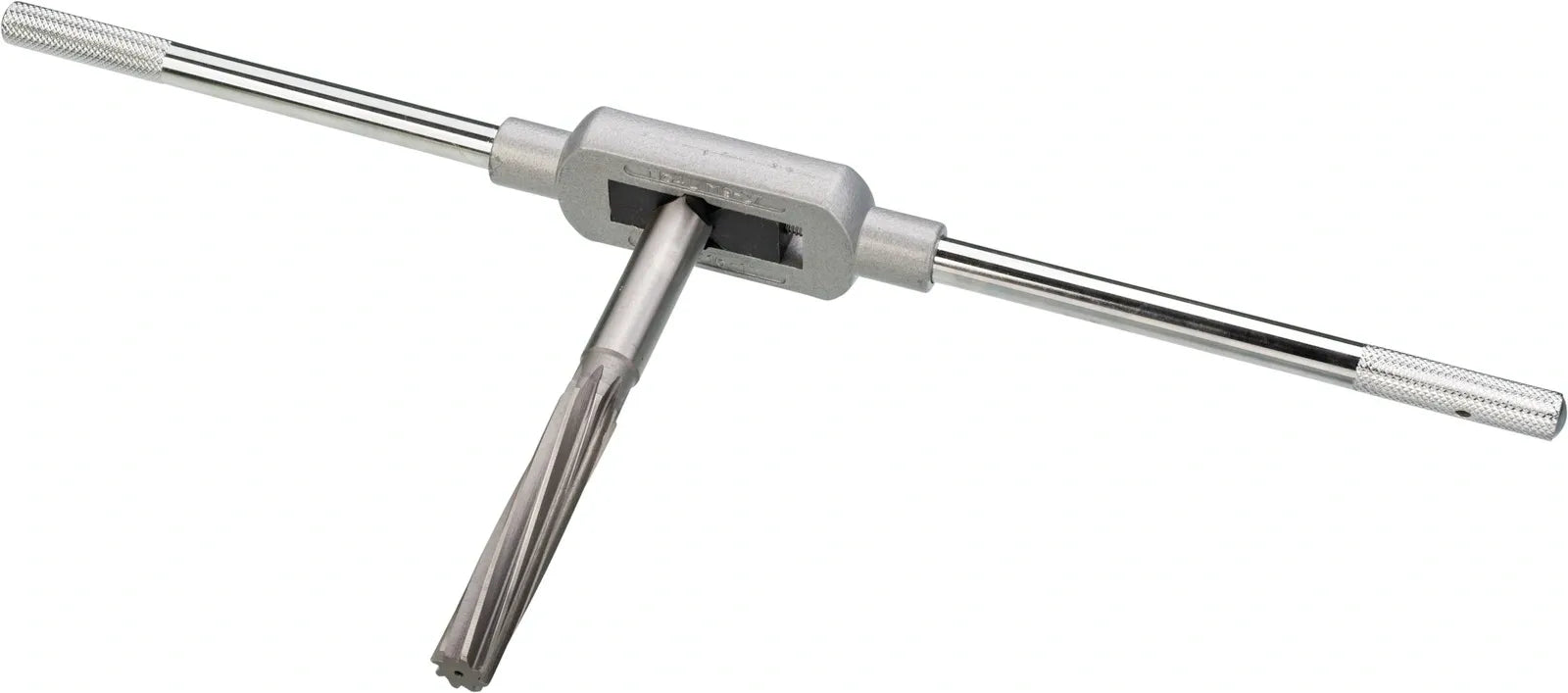

- The shaft seat in the frame is then reamed to 18 mm using the reamer. The reamer is supplied with the appropriate tap wrench, no additional tools are required. This should also be well oiled and cleaned. With the swingarm removed, it is possible to ream the fit from both sides.

- Replace the worn-out brake lever shaft with our oversize shaft item # 10122RP - all attachments (seals, foot brake lever, brake linkage) can be retained unchanged. Well greased, the new shaft now fits into the repaired shaft seat without play. Matching seals are item # 10075, 2 required.

The difference and feel is impressive.

See associated items, greasable stainless steel rear brake lever, item # 10122RP, and rear brake lever dust cover, item # 10075 (x2)
